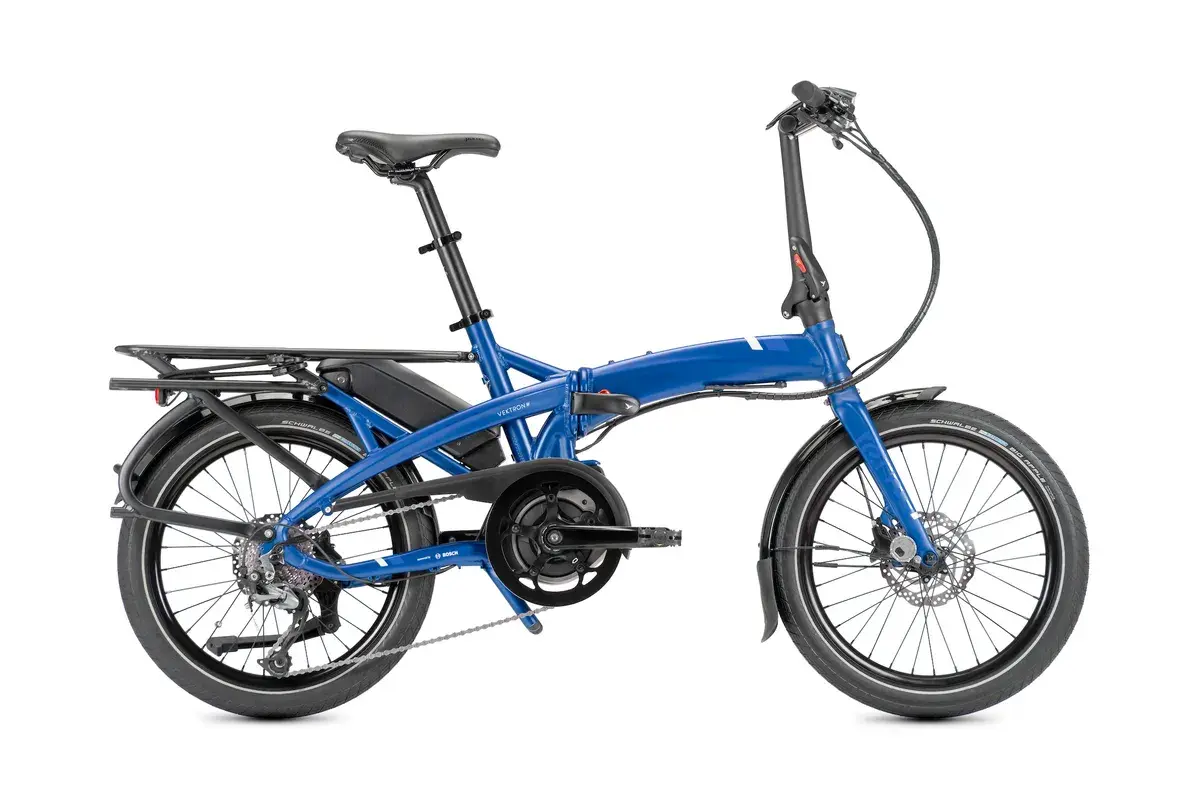

Tern E-Bike Vektron Q9 20" Blue Blue/Silver 9s Bosch Active Plus 400wh 32kph
- New colors and updated styling
- Upgraded to the Bosch Active Line Plus electric drivetrain for up to 270% assistance and 50 Nm of torque
- Hydraulic disc brakes for all-weather stopping power
- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
Tern Vektron Q9 Bosch Active Plus 400w/h
$5,990.00 Regular Price
$5,399.90Sale Price
GENERAL INFO
SPEEDS 1 x 9 WEIGHT 21.9 kg GEAR INCHES 2.65 - 7.72 m FOLDING SIZE 42 × 86 × 68.5 cm FOLDING TIME 10 sec FRAME SIZES One size DISTANCE (SEATPOST TO HANDLEBAR) 62 - 69 cm DISTANCE (SADDLE TO PEDAL) 67 - 110 cm SUGGESTED RIDER HEIGHT 147 - 195 cm MAX GROSS VEHICLE WEIGHT 125 kg MAX RIDER WEIGHT 105 kg FRAME
FRAME Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies FORK Tern Tarsus, 6061-Al, hydroformed COCKPIT
HANDLEPOST Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm STEM Tern Andros, adjustable, forged construction, patented technology HEADSET Tern Flux, cartridge bearings, Physis integrated HANDLEBAR Flat bar, 6061-AL, Tern Andros adapted GRIPS/BAR TAPE Velo ergonomic, lock-on SADDLE Tern Porter, patented GripPad design SEATPOST Tern Telescope, 34.9/30.9 mm, 2014-AL SEATPOST CLAMP Tern Collar, 6061-AL, 2pc BRAKES
FRONT BRAKE Shimano, hydraulic disc REAR BRAKE Shimano, hydraulic disc BRAKE LEVERS Shimano, hydraulic disc BRAKE CABLE & HOUSING Shimano, hydraulic disc WHEELS
FRONT HUB Shimano disc REAR HUB Shimano disc SPOKES AND NIPPLES Stainless steel RIMS Kinetix Comp, for disc TIRES Schwalbe Big Apple, 55-406, puncture protection, Reflex TRANSMISSION
SHIFTER(S) Shimano Alivio, 1 x 9 spd, trigger REAR DERAILLEUR Shimano Alivio Shadow CRANKSET Tern custom, forged 6061-AL crankarm CASSETTE/FREEWHEEL Shimano 11-32T, 9 spd BOTTOM BRACKET Motor integrated CHAIN 9 spd, DHT for eBike, GST corrosion resistant coating PEDALS MKS EZY SHIFTER CABLE & HOUSING Jagwire LEX-SL, slick treatment, alloy ferrules E-SYSTEM
MOTOR Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32 kph BATTERY Bosch PowerPack 400Wh DISPLAY Bosch Purion, 4 mode selectable, walk assist RANGE 400 Wh: 55 -110 km CHARGER 100-240V, 4A BELLS & WHISTLES
BELL Aluminum CHAINGUARD SKS Chainblade KICKSTAND URSUS, rear mount CLIP SYSTEM Magnetix 3.0 LUGGAGE SOCKET Yes FRONT LIGHT Tern Valo Direct, 190 lumens REAR LIGHT Herrmans H-Trace, for eBike FENDERS SplashGuard, stainless hardware RACK(S) Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg
